Περιγραφή

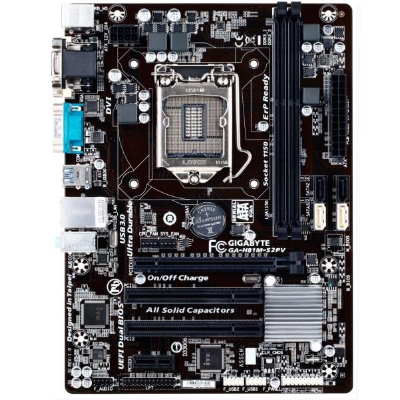

GIGABYTE GA-H81M-S2PV SOCKET 1150

• Τοποθέτηση: Micro ATX Form Factor; 24.4cm x 18.0cm. GIGABYTE GA-H81M-S2PV SOCKET 1150
• Υποδοχή CPU: Socket 1150.
• Υποστηριζόμενοι Επεξεργαστέςς: Υποστήριξη Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package. L3 cache varies with CPU.
• Chipset: Intel H81 Express Chipset.
• Υποδοχές Μνήμης: 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory. Dual channel memory architecture. Support for 1600/1333 MHz memory modules. Support for non-ECC memory modules. Support for Extreme Memory Profile (XMP) memory modules
• Τεχνολογία Multi-Graphics: Support for 3-Way/2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology.
• Υποδοχές Επέκτασης: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x1 slot. (The PCI Express slots conform to PCI Express 2.0 standard.). 2 x PCI slots
• Υποστήριξη Δίσκων: 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) supporting up to 2 SATA 6Gb/s devices. 2 x SATA 3Gb/s connectors (SATA2 2~ SATA2 3) supporting up to 2 SATA 3Gb/s devices.
• Θύρες Επικοινωνίας (Εξωτερικές): 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x serial port, 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In, Line Out, Microphone)
• Εσωτερικές Συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x SATA 6Gb/s connectors, 2 x SATA 3Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 2 x USB 2.0/1.1 headers, 1 x parallel port header, 1 x Clear CMOS jumper.
• On-Board:
  –VGA: Integrated Graphics Processor – Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200. 1 x DVI-D port, supporting a maximum resolution of 1920×1200. The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB.
  –Ήχος: Realtek ALC887 codec. High Definition Audio. 2/4/5.1/7.1-channel
  –LAN: Realtek GbE LAN chip (10/100/1000 Mbit)
• Εγγύηση: 1 Έτος (ME ΙΟ SHEILD)
